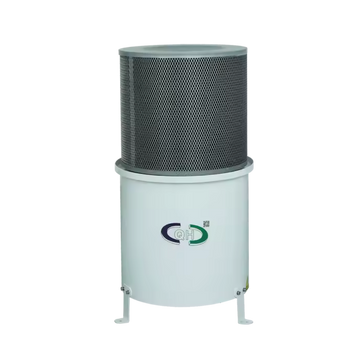

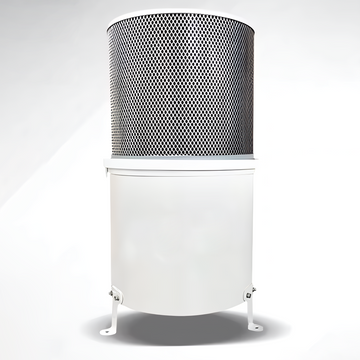

Industrial CNC Oil Mist Extraction Unit - DMG-250 - 600m³/h Airflow
-
Estimated Delivery:Jun 09 - Jun 13
The MistWorks DMG‑250 is a robust, mist extraction unit designed to capture oil mist, fine smoke, and airborne particles typically generated in machining environments. With high-efficiency HEPA filtration and compact design, the DMG‑250 is a reliable and cost-effective choice for machine shops looking for oil mist extraction without the premium price tag.
Built for 3‑phase, 380V/50Hz power and delivering 600 m³/hr airflow, it’s engineered to handle extraction for CNC turning, milling, drilling, and tapping operations.
Purchase includes main extraction unit, after-filter, on/off switch, extraction hose, hose mounting hardware, and main unit mounting bracket. Supplied ready for simple assembly and connection to customer-provided 3-phase power supply.
Ideal for:

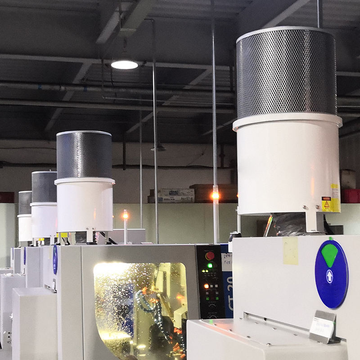

- Enclosed CNC milling machines
- Turning centres producing coolant mist
- Light oil smoke and mist applications
- Single-machine extraction setups
Not suitable for:
- Heavy grinding dust
- Welding fumes
Which DMG unit do I need?
| Machine Type | Recommended Unit | Machine Enclosure |
| Small CNC enclosure | DMG-250 | 1- 3 m³ |
| Standard VMC / lathe | DMG 370 | 3 m³ - 5m³ |
| Larger machining centre | DMG 750 | 5m³ - 10m³ |
| Heavy mist / multiple machines | DMG 1100 | 10m³ + |
Recommendations are based on approximately 3–4 air changes per minute within a fully enclosed CNC machine enclosure. Heavy smoke, high-pressure coolant systems, or open machines may require a larger unit.
⚙️ Technical Specifications
| Attribute | Detail |
|---|---|
| Airflow Rate | 600 m³/hr |
| Motor Power | 1.1k W, 3-phase |
| Voltage | 380 V / 50 Hz (hardwired) |
| Filter Type | HEPA H13 |
| Dimensions | 300mm diameter × 570mm height with filter |
| Weight | Approx. 20 kg |
Industrial CNC Oil Mist Extraction Unit - DMG-250 - 600m³/h Airflow
Engineered for Industrial Air Quality
Experience effective oil mist extraction with every unit. Built for CNC, milling, and industrial machining environments, our system is designed to deliver cleaner air, better safety, and consistent performance.
-
Efficient Oil Mist Filtration
Captures airborne oil mist, smoke, and fine particles directly at the source using high-grade HEPA H13 filtration. Ideal for CNC and turning operations.
-
Stable Airflow Performance
Delivers consistent airflow up to 250 m³/hr to maintain a clear workspace and protect sensitive equipment from mist accumulation.
-
Low-Noise Operation
Engineered for quiet performance (≤ 58 dB), making it suitable for shop floors that demand both efficiency and comfort.
Product Specifications
Designed for performance in demanding machining environments, the DMG-Series oil mist extractor delivers reliable filtration, quiet operation, and compact industrial durability. Below are the key technical specifications of the DMG-250 model.
-
250 m³/hr
-
140 W, 3-phase
-
380 V / 50 Hz (hardwired)
-
≤ 58 dB
-
HEPA H13
-
350 W x 350 H x 380 D mm
-
Approx. 12.5 kg
More Detail
- DMG-250 Oil Mist Extractor Unit
- HEPA H13 Filter (installed)
- Power Cable with 3-phase Connector
- Installation & Maintenance Guide
- Warranty & Safety Documentation
- 140 W Industrial Motor
- 3-phase 380 V / 50 Hz hardwired connection
- Thermal overload protection built-in
- Designed for continuous operation
- Low power consumption for energy efficiency
- Tool-free filter access for easy replacement
- Filter replacement recommended every 6-12 months
- Simple cleaning instructions included
- Minimal downtime during service
- Support available for technical questions
